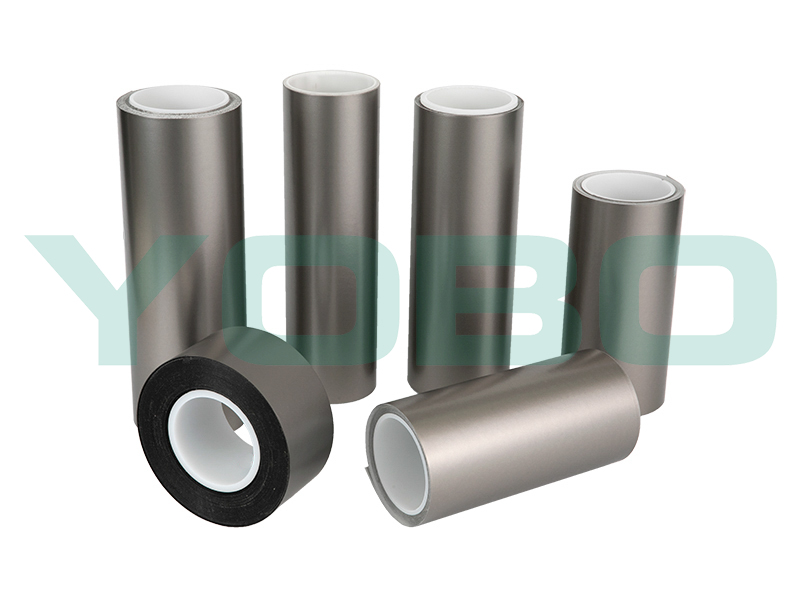

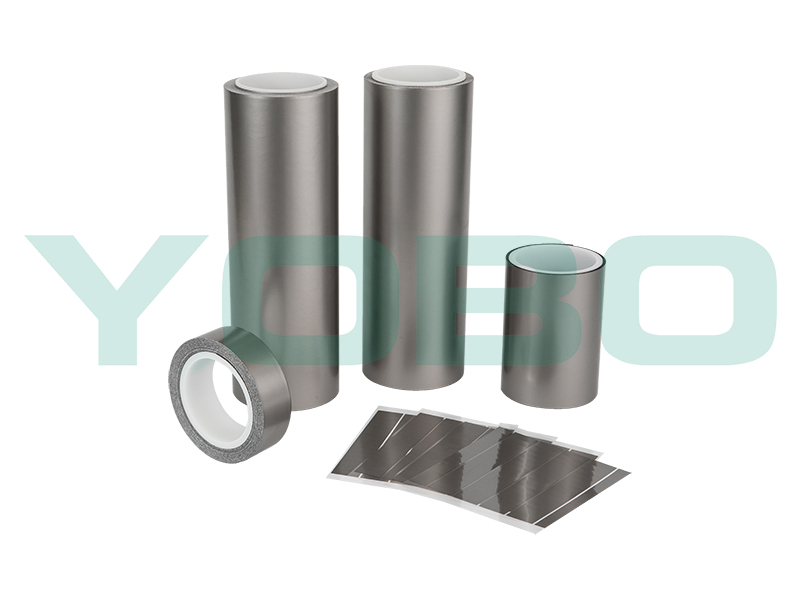

EMAS-08N/12N/15N electromagnetic noise suppression sheet

The company's EMAS series products are made by mixing, dispersing and pressing micron-level flake alloy soft magnetic powder and polymer, and have a good electromagnetic noise suppression function. The material is soft and can be easily die-cut into different shapes and sizes. At the same time, according to customer requirements, different types of double-sided adhesives with a thickness of 0.03mm-0.1mm can be laminated, which can be used in RFID anti-metal tags, solving electromagnetic waves in electronic products and other fields.

E-mail: [email protected]

PDF download

Product Details

product description:

The company's EMAS series products are made by mixing, dispersing and pressing micron-level flake alloy soft magnetic powder and polymer, and have a good electromagnetic noise suppression function. The material is soft and can be easily die-cut into different shapes and sizes. At the same time, according to customer requirements, different types of double-sided tapes with a thickness of 0.005mm-0.05mm can be laminated, and it can also be used with conductive materials such as copper foil, aluminum foil, and conductive cloth.

Product Features:

1. High magnetic permeability.

2. Coil delivery, easy to process.

3. It can be used with conductive materials such as copper foil, aluminum foil, conductive cloth, etc. to enhance the absorption/shielding effect.

4. The thinnest thickness can reach 0.02mm, and the width can reach 450mm.

5. Exquisite appearance, no powder.

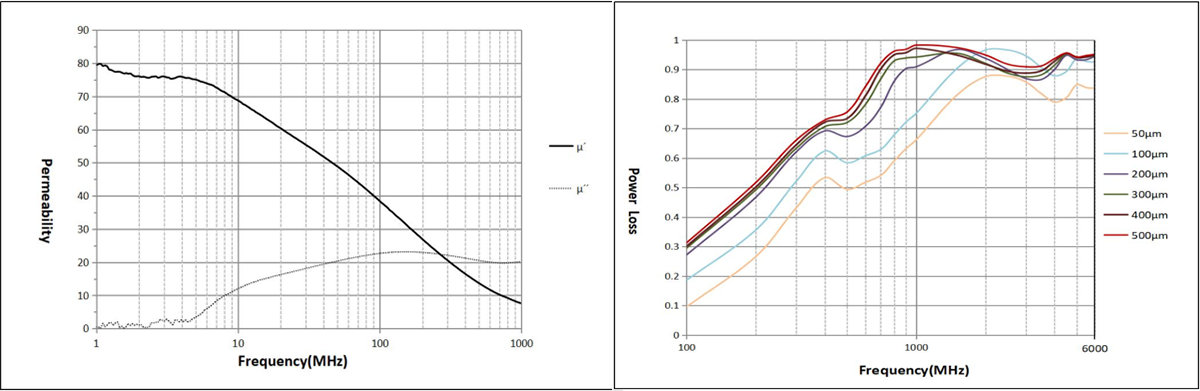

EMAS-08N technical parameters:

Test items	Technical index	unit	testing method
Absorbing material thickness	0.02-0.5 (±10%)	mm	ASTM D374
μ ' @ 1MHz	80±10%	with	Agilent E4991B
Surface resistance	≥1X10*5	Ω	SJ/T10694-2006
density	3.0±0.3	g/cm³	ASTM D792
Operating temperature	-40~120	°C	-
Operating frequency range	10M ~ 6G	Hz	-
Double-sided tape thickness	/	mm	ASTM D3652

Product performance:

Products are RoHS compliant and halogen-free

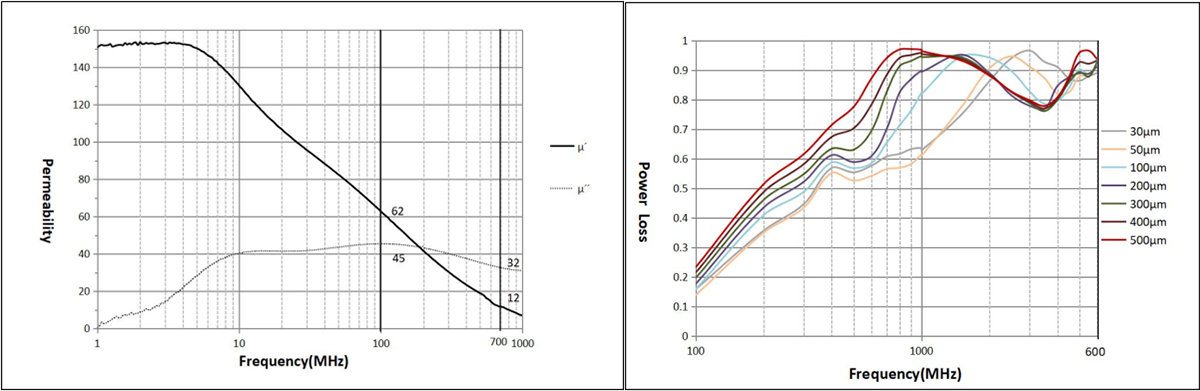

EMAS-12N technical parameters:

Test items	Technical index	unit	testing method
Absorbing material thickness	0.02-0.5 (±10%)	mm	ASTM D374
μ ' @ 1MHz	120±10%	with	Agilent E4991B
Surface resistance	≥1X10*5	Ω	SJ/T10694-2006
density	3.2±0.3	g/cm³	ASTM D792
Operating temperature	-40~120	°C	-
Operating frequency range	10M ~ 6G	Hz	-
Double-sided tape thickness	/	mm	ASTM D3652

Product performance:

Products are RoHS compliant and halogen-free

EMAS-15N technical parameters:

Test items	Technical index	unit	testing method
Absorbing material thickness	0.02-0.5 (±10%)	mm	ASTM D374
μ ' @ 1MHz	150±10%	with	Agilent E4991B
Surface resistance	≥1X10*5	Ω	SJ/T10694-2006
density	3.2±0.3	g/cm³	ASTM D792
Operating temperature	-40~120	°C	-
Operating frequency range	10M ~ 6G	Hz	-
Double-sided tape thickness	/	mm	ASTM D3652

Product performance:

Products are RoHS compliant and halogen-free

Note: The information contained in the data sheet is to help you design and select a guide. They are not guaranteed to be applicable to all applications, and users should determine the suitability of each application. In addition, before using this product, we recommend that users conduct a test to determine whether the product is suitable for the area we require. We reserve all rights, including copyright, and the content of this document. Without the consent of the company, copying, reprinting and other purposes are strictly prohibited. If you need more help, please contact us.
